Double Knife Synchro-fly Cutting Machine DFJ-1900S

Model Number : DFJ-1900S

Place of Origin : CHINA

MOQ : ONE SET

Payment Terms : T/T

Supply Ability : 10 SETS/MONTH

Delivery Time : 45 WORK DAYS

Packaging Details : WOODEN CASE

Cutting machine : Double Knife Synchro-fly Cutting Machine

Web Width Range : 400-1900MM

Max Unwinding Diameter : 1900MM(71")

Thickness Range of Paper : up to 1000gsm

Cutting Method : Dual Knife Synchro-fly cutting

Max Cutting Speed : 300cuts/min

Max linear Speed : 300M/Min

Cutting Length Range : 450-1600mm

Cutting Precision : ±0.2MM

Sheet Squareness : ±0.25MM

Slitting Format : 2 sheets

Max Piling Height : 1700MM

Request for Air Source : 0.8Mpa

Total Power : 45KW

Voltage : AC380V/220V, 50HZ

Gross Weight : 16T

Overall Dimension(LxWxH) : 13500X5300X2630MM

Contact Now

Dual Knife Synchro-fly Cutting Machine DFJ-1900S

DFJ-1900S Double Knife Synchro-fly Cutting Machine

The machine adopts Double Knife Synchro-fly Cutting Method, so that the cut sheets have no deckle edge, no dust, and no inclination. And the machine is high precision, and can be connected to the printing machine directly.

Double Knife Synchro-fly Cutting Machine DFJ-1900S

Specification of Double Knife Synchro-fly Cutting Machine DFJ-1900S:

Model	DFJ-1900S
Web Width Range	400-1900MM
Max Unwinding Diameter	1900MM(71")
Thickness Range of Paper	up to 1000gsm
Cutting Method	Dual Knife Synchro-fly cutting
Max Cutting Speed	300cuts/min
Max linear Speed	300M/Min
Cutting Length Range	450-1600mm
Cutting Precision	±0.2MM
Sheet Squareness	±0.25MM
Slitting Format	2 sheets
Max Piling Height	1700MM
Request for Air Source	0.8Mpa
Total Power	45KW
Voltage	AC380V/220V, 50HZ
Gross Weight	16T
Overall Dimension(LxWxH)	13500X5300X2630MM

Contact Person:

Kaiyan Liang

Qingdao ZFC Trading Co.,Ltd

Room 3620, 88 Anshan 1st Road, Qingdao, China

Tel: 0086 532 5851 9016

Fax:0086 532 5851 9016

WhatsAPP: 0086 13906390477

WeChat: zfc-lky

Email: zhengfangcheng@126.com

liangkaiyan5507@126.com

Skype: zhengfangcheng@126.com

www.zfcprinting.com

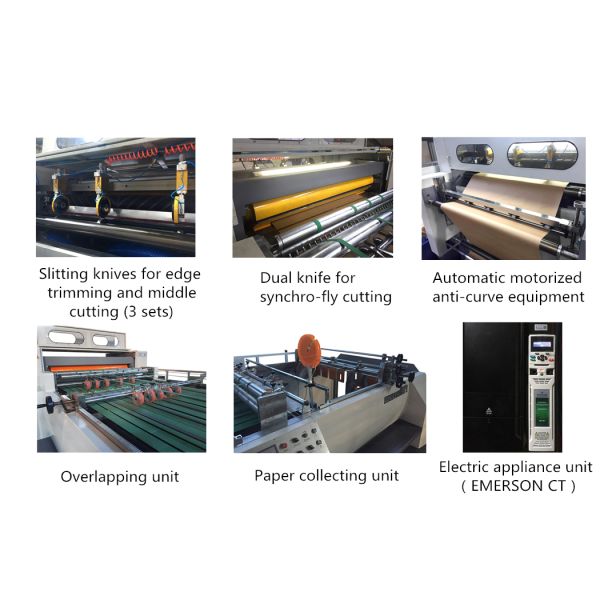

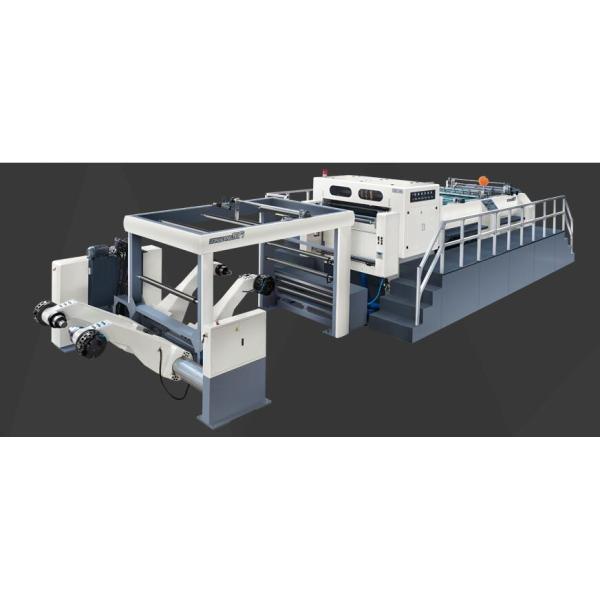

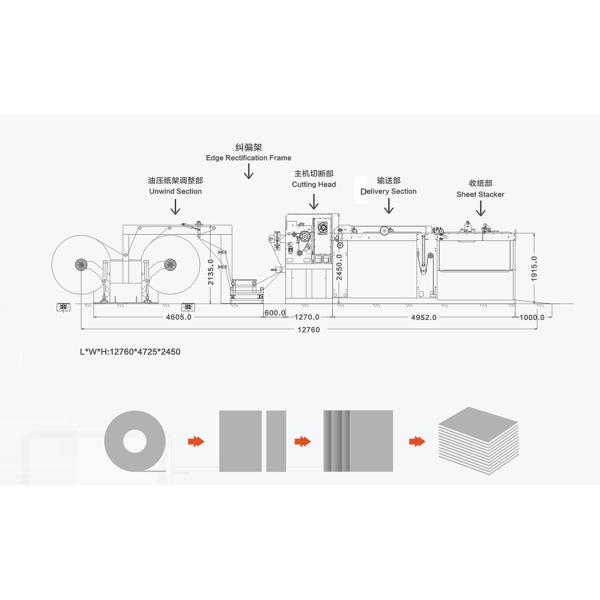

Double Knife Synchro-fly Cutting Machine DFJ-1900S Images
